◎ 全隔離三相交流調壓模塊（ MGR-ST ）
FULL ISOLATION THREE PHASE AC VOLTAGE REGULATOR MODULE（MGR-ST）
◆ 全隔離三相交流調壓模塊 ( 以下簡稱三相調壓模塊MGR-ST) 內部集三相電相位檢測 , 移相電路 , 觸發電路和三組反并聯單向可控硅于一體 , 在我公司提供的三相同步變壓器模塊 ( 型號為 TB-3) 的支持下 ( 同步變壓器還兼作提供三相調壓模塊內部工作電源用 ), 不需外部任何電路和工作電源 , 便可自動控制或外接電位器手動控制 , 達到改變可控硅導通角即可實現三相負載電壓從0V 到電網全電壓的無級可調。

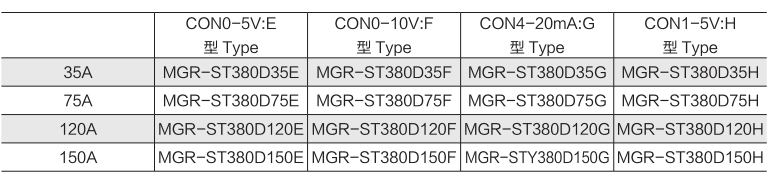

◆ 三相調壓模塊 MGR-ST 原則上應用于 380VAC,50Hz 的三相電網上 , 根據控制信號的不同分 E, F, G, H型等四類 , 以下為型號表。
（注：以上電流等級為模塊內部一組反并聯可控硅電流最大有效值）
◆ The full isolation three phase AC voltage regulator module (hereinafter referred to as the three phase voltage regulator module MGR- ST) integrates the three phase phase-detection circuit, the phase-shift circuit, the trigger circuit and three sets of reverse-parallel SCR thyristors. With the support of the three phase synchronous transformer module (TB-3) provided by our company (the synchronous transformer also serves as the internal operation power supply for the three phase voltage regulator module) and no requirement for the external circuit or power supply, the conduction angle of thyristors can be changed by the automatic control method or manual control method (i.e. the external potentiometer), which means the voltage amplitude of the three phase load can be continuously adjusted from 0V to the maximum voltage of the power grid.
◆ The three phase voltage regulator module MGR- ST should be applied to the 380VAC, 50Hz three phase power grid. According to the different control signals, MGR-ST can be divided into four types: E, F, G, and H types. The following is the specification model table.
（注：以上電流等級為模塊內部一組反并聯可控硅電流最大有效值）
(Note: The current grade in this table is the maximum rms current of one set of the reverse-parallel SCR thyristors)
◆ 為方便說明，下面以0-5V控制信號為標準作介紹（型號簡稱 MGR-ST）。
◆ For convenience of explanation, the following introduces with the 0~5V control signal as a standard (Model: MGR-ST)

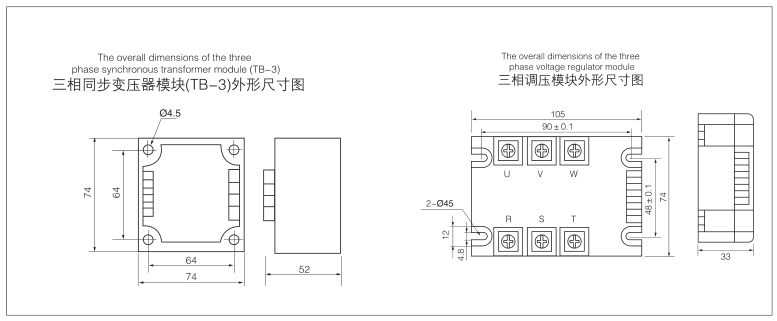

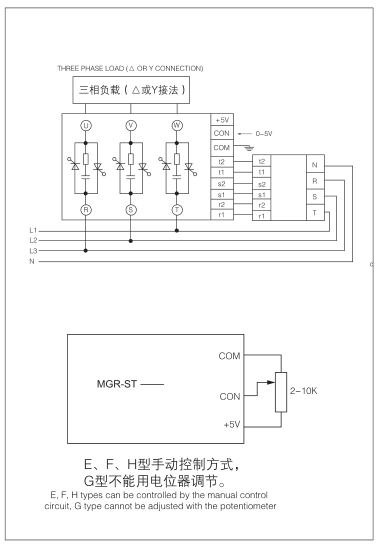

◆ 三相調壓模塊 R, S, T 和同步變壓器模塊上 R, S, T 接電網 L1, L2, L3( 無相序要求 , 但兩模塊的 R, S, T 應對應連接 ), 同步變壓器 N 接地線 . U, V, W 接三相負載(Y, △接法均可 ). 三相調壓模塊上 r1, r2, s1, s2, t1, t2和同步變壓器模塊上r1, r2, s1, s2, t1, t2用排線連接(插上線插口即可 ), +5V 端為內部產生 , 只供電位器手動控制用 , CON 為控制端 , COM 為模塊內部地 . 其中 T, S,R, N, U, W 的強電部分與 r1, r2, s1, s2, t1, t2, +5V,CON, COM 的弱電部分為全隔離 . 應用電路及手動控制。
◆ The R, S, T ports of the MGR-ST module and the R, S, T ports of the TB-3 module should be connected to the L1, L2, L3 ports of the power grid (no phase sequence requirement, but the R, S, T ports of these two modules should be connected one-to-one), and the N line of the synchronous transformer module should be grounded. And U, V, W ports should be connected to three phase load (Y or △ connection are all available). The r1, r2, s1, s2, t1, t2 ports of MGR- ST module and the r1, r2, s1, s2, t1, t2 ports of the TB-3 module are connected through terminal strips (plugged together to connect directly). COM port is the internal common ground terminal, CON port is the control terminal, and the +5V port is the power supply generated inside the module only for the manual control of potentiometer. And the strong current part (T, S, R, N, U, W ports) and the weak current part (r1, r2, s1, s2, t1, t2, +5V, CON, COM ports) are fully isolated, and these two parts should be controlled by the automatic control method or manual control method.
◎ 有關技術指標及應注意的問題
Related technical specifications and precautions
1、 三相調壓模塊和三相同步變壓器模塊 TB-3 組成的電路可應用于380VAC (300~420VAC), 50Hz的電網上。
2、CON 對 COM 必須為正 , 如極性相反則輸出端失控( 全開或全閉 ). 當控制端 CON 從 0~5V 改變時 , 交流負載上的電壓從0V到最大值可調(對阻性負載而言).其中 CON 在 0~0.8V 左右時為全關閉區域 , 能可靠關斷模塊的輸出 ; CON 在 0.8V~4.6V 左右為可調區域 , 即隨著控制電壓的增大 , 導通角 α 從 180°到 0°線性減小 , 交流負載上的電壓從 0V 增大到最大值 ; CON 在4.6V~5V 左右時為全開通區域 , 交流負載上的電壓為最大值 ( 接近電網電壓 )。
3、 CON 對 COM 的輸入阻抗分 E, F 和 H 型均為大于等于 30KΩ; G 型為 250Ω. +5V 電壓信號只提供給手控電位器用 , 不做他用 , 所選用的電位器阻值在2~10KΩ 間 , 注 : 4~20mA 的 G 型不能用電位器手動調節 , 此時 +5V 端也沒有用處。
4、強電部分 , 弱電部分 , 模塊底板相互間絕緣電壓均大于 2000VAC.。
5、整個模塊的發熱量按負載實際電流安倍數乘 1.5 瓦 /安倍計算 , 散熱器可選用 MG-Y, MG-H 系列。
6、三相負載的三相功率應均衡 . 負載為 Y 形接法時 , Y的中心點接與不接中性線均可 , 但接中性線時高次諧波對電網干擾要比不接中性線時大。
7、三相交流異步電機的調速應采用變頻器，只有風機類、水泵類電機在要求不高的場合可采用三相調壓模塊。
8、三相同步變壓器模塊 TB-3 上的 N 須可靠接地。TB-3 與三相調壓模塊配套出售。
9、三相交流調壓建議優先采用下面部分介紹的 SSR-3JK 和三只隨機型固態繼電器所組成的調壓系統。
10、有關電流等級的選取及保護等有關使用注意事項請
參考單相交流固態繼電器。
1、The circuit consisting of three phase voltage regulator module and three phase synchronous transformer module TB-3 can be applied to 380VAC (300~420VAC), 50Hz power grid.
2、CON must be positive relative to COM, and if the polarity is opposite, the output terminal will be out of control (fully open or fully closed). When the control terminal CON changes from 0V to 5V, the voltage on the AC load can be adjusted from 0V to the maximum value (for resistive loads). When the control voltage on CON is around 0V~0.8V (Fully- closed Region), the control signal can reliably shut down the output of the module. When the control voltage on CON is around 0.8V~4.6V (Adjustable Region), the conduction angle α decreases linearly from 180° to 0° as the control voltage increases, and the voltage on the AC load increases from 0V to the maximum value. When the control voltage on CON is around 4.6V~5V (Full-open Region), the voltage on the AC load is the maximum value (close to the power grid voltage).
3、The input impedance between CON and COM is divided into E, F and H type (the impedance of these three types are greater than or equal to 30KΩ), and G type (the impedance is 250Ω). The +5V voltage signal is only provided for the manual potentiometer (the selected resistance is between 2~10KΩ), not for other uses. Note: The G type (4~20mA as control signal) cannot be manually adjusted by the potentiometer, so the +5V port is useless for the G type.
4、The insulation voltage between the strong current part, the weak current part, and the module backplane is greater than 2000VAC.
